Little Giant PWM 5200 Mag Drive Waterfall Pump, 4080 gph
Regular price
Couldn't load pickup availability

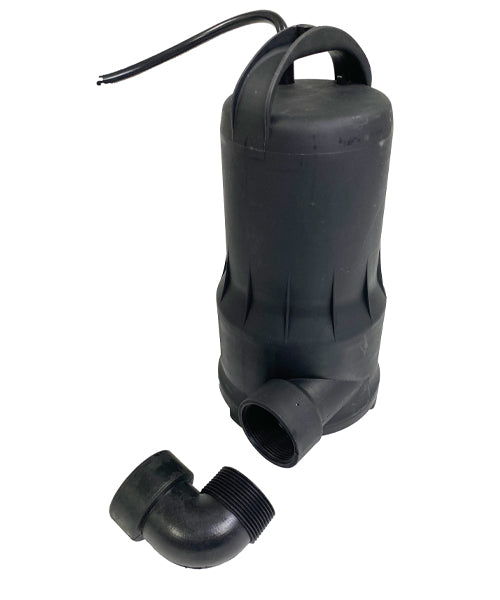

Keep your water garden or pond well-circulated by using this Little Giant PWM 5200 Mag Drive Waterfall Pump. Submersible and durable, this hardy unit is designed to run continuously in a fresh water feature, and uses no oil or seals while providing reliable and safe operation. The unit's wet rotor motor uses less energy than a direct drive counterpart, and the pump's 4080 gph capacity is perfectly suited to medium sized water features. A screened base helps filter debris out of the 1.5" inlet, while three short legs elevate the item marginally off the base of your pond or skimmer. Simply attach a 1.5" MNPT fitting to the threaded outlet for a direct line from the pump to your pond or fountain, or use the included elbow for additional flexibility in your setup. This unit's thermoplastic body will prove dependable throughout the seasons, and its compact size is easy to place in a variety of water displays. Power your pond, stream, or other water feature using this PWM 5200 Mag Drive Waterfall Pump. One year warranty.
Note: Per the manufacturer, this product, Little Giant item number 517252, is the replacement for Cal Pump item number PWM5200.
Pump Performance
Use this chart to determine the proper size pump for your pond. The height of the water outlet above the surface of the pond is called the Head Height. Gallons Per Hour (GPH) represents the maximum amount of water your pump is capable of pushing at a given Head Height. To ensure the pump's best possible performance, reduce frictional losses by using the largest diameter hose possible.

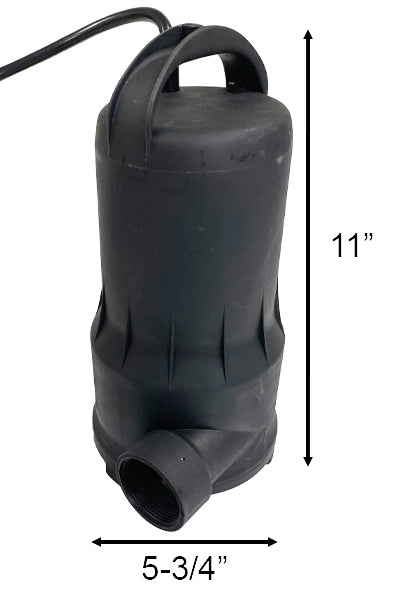

Dimensions: 5.75" dia. x 11"H, 20'L cord
Inlet: accepts 1.5" FNPT fittings
Outlet: accepts 1.5" MNPT fittings
Maximum Head: 20' shutoff
Maximum Flow: 4080 gph
Power: 410 Watts, 5 amps
Voltage: single-phase, 115V
Mfg. Warranty: 1 year warranty
Note: Per the manufacturer, this product, Little Giant item number 517252, is the replacement for Cal Pump item number PWM5200.
Pump Performance
Use this chart to determine the proper size pump for your pond. The height of the water outlet above the surface of the pond is called the Head Height. Gallons Per Hour (GPH) represents the maximum amount of water your pump is capable of pushing at a given Head Height. To ensure the pump's best possible performance, reduce frictional losses by using the largest diameter hose possible.
Head Height (in feet) | Gallons per Hour |
0' | 4080 |
1' | 4080 |
5' | 3460 |
10' | 2460 |
15' | 1080 |
20' | shutoff |
Dimensions: 5.75" dia. x 11"H, 20'L cord
Inlet: accepts 1.5" FNPT fittings
Outlet: accepts 1.5" MNPT fittings
Maximum Head: 20' shutoff
Maximum Flow: 4080 gph
Power: 410 Watts, 5 amps
Voltage: single-phase, 115V
Mfg. Warranty: 1 year warranty
