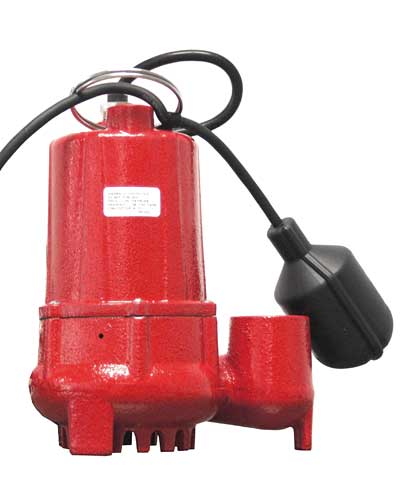

Red Lion Cast Iron Sump Pump with Float, RL-SC50T, 4300 gph
Regular price
Couldn't load pickup availability
Quickly and efficiently move water from your sump basin or remove it from your basement using the Red Lion Cast Iron Sump Pump with Float. This rugged unit easily relocates water from your existing basin or lift station, while the tethered float ensures safe operation. The unit rests in any 18" diameter or larger basin, and will remain durable and reliable thanks to its cast iron housing. The clog resistant design can accommodate up to 3/8" spherical solids, and its robust motor is made for high water volume removal applications. The bottom inlet is surrounded by a ring of smaller, cast iron pegs, elevating the piece for safe and efficient water flow. The thermally protected motor keeps the pump from overheating, while the dielectric oil in the item ensures a long life for the bearings. Using 115 volts for power, this unit connects to a grounded outlet easily with its 3 pronged plug, and the 9.5' long cord offers versatility in placement. A secondary, 10' long cord attached to the float has a piggyback outlet, enabling the item to be used with a switch, and the 1/2 horsepower motor will meet your water removal needs handily. The outlet accepts 1 1/2" MNPT fittings, for ease in plumbing the piece. Safely and effectively remove water from your sump basin with this Cast Iron Sump Pump with Float. Three year limited warranty.
Pump Performance
Use this chart to determine the proper size pump for your basin. The height of the water outlet above the surface of the water is called the Head Height. Gallons Per Hour (GPH) represents the maximum amount of water your pump is capable of pushing at a given Head Height. To ensure the pump's best possible performance, reduce frictional losses by using the largest diameter hose possible.
Model Number: RL-SC50T
Dimensions: 8"L x 6"W x 10"H, 9.5'L and 10'L cord
Outlet: accepts 1 1/2" MNPT fittings
Maximum Flow: 4300 GPH
Maximum Head: 28' shutoff
Power: 1/2 hp, 5.3 amps
Voltage: single-phase, 115V
Mfg. Warranty: 3 year limited warranty
Pump Performance
Use this chart to determine the proper size pump for your basin. The height of the water outlet above the surface of the water is called the Head Height. Gallons Per Hour (GPH) represents the maximum amount of water your pump is capable of pushing at a given Head Height. To ensure the pump's best possible performance, reduce frictional losses by using the largest diameter hose possible.
Head Height (in feet) | Gallons per Hour |
0' | 4300 |
5' | 3840 |
10' | 3000 |
15' | 2220 |
20' | 1440 |
28' | shutoff |
Model Number: RL-SC50T
Dimensions: 8"L x 6"W x 10"H, 9.5'L and 10'L cord
Outlet: accepts 1 1/2" MNPT fittings
Maximum Flow: 4300 GPH
Maximum Head: 28' shutoff
Power: 1/2 hp, 5.3 amps
Voltage: single-phase, 115V
Mfg. Warranty: 3 year limited warranty
